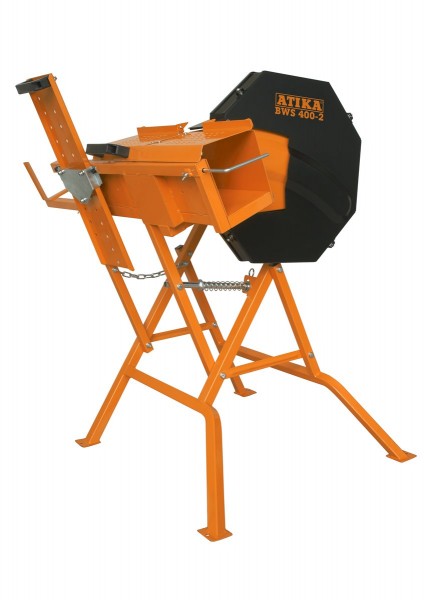

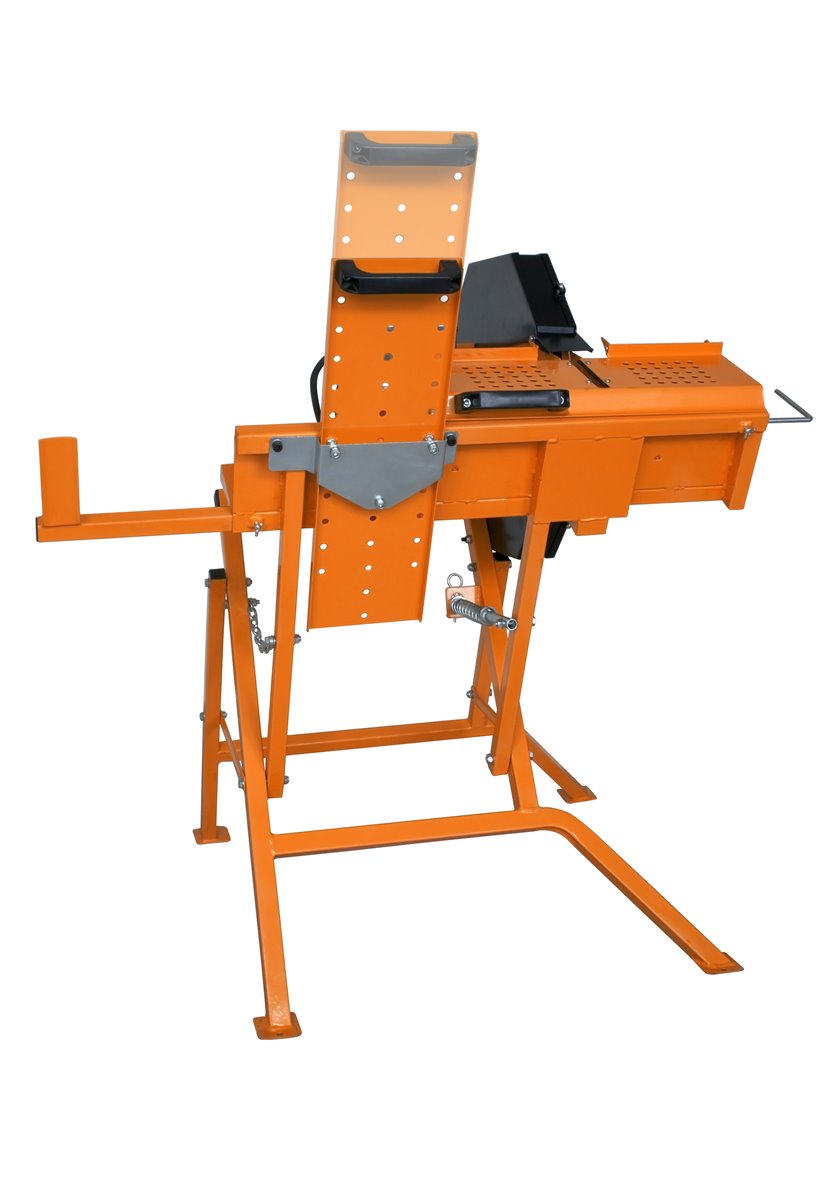

ATIKA BWS 400-2 Firewood Saw Tilting Circular Saw | 230V | 2200 W

Equipment:

• Effective and effortless sawing thanks to the powerful motor and the large HM saw blade.
• According to the latest European standard: more safety when cutting due to the protective flap and the integrated rocker lock.
• The rocker including the retaining teeth prevents the log from twisting.
• Ergonomic and energy-saving work due to the height-adjustable operating handle (working height adjustable in 11 steps from 850 to 1220 mm height.
• Comfortable and easy sawing: including adjustable longitudinal fence for logs of equal length and adjustable support extension for long logs.
• The integrated thermal protector automatically switches off the motor in case of overload.
• Equipped with a zero-voltage release as standard (restart protection in case of power failure).
• Due to its very compact size, the firewood tilting circular saw can be stored in a space-saving way.

Technical details:

• AC motor: 230 V ~ 50 Hz
• Power P1 (S6 - 40%): 2200 W
• No-load speed n0: 2800 min-1
• Protection class: IP 54
• Mains fuse: 16 A slow-blow
• Carbide saw blade Ø (40 teeth): 405 mm
• Blade bore Ø: 30 mm
• Saw blade thickness: 2.2 mm
• Cutting width: 3,2 mm
• Cutting capacity approx.: min. Ø 30 mm - max. Ø 140 mm
• Wood length approx.: min. 200 mm - max. 1000 mm
• Working height adjustable approx.: 850 - 1220 mm
• Dimensions (length x width x height): 1002 x 737 x 1046 mm
• Guaranteed sound power level LWA: 115 dB (A)
• Sound pressure level LPA: 96 dB (A)
• Uncertainty factor K: 4.0 dB (A)
• Weight approx.: 38.3 kg
