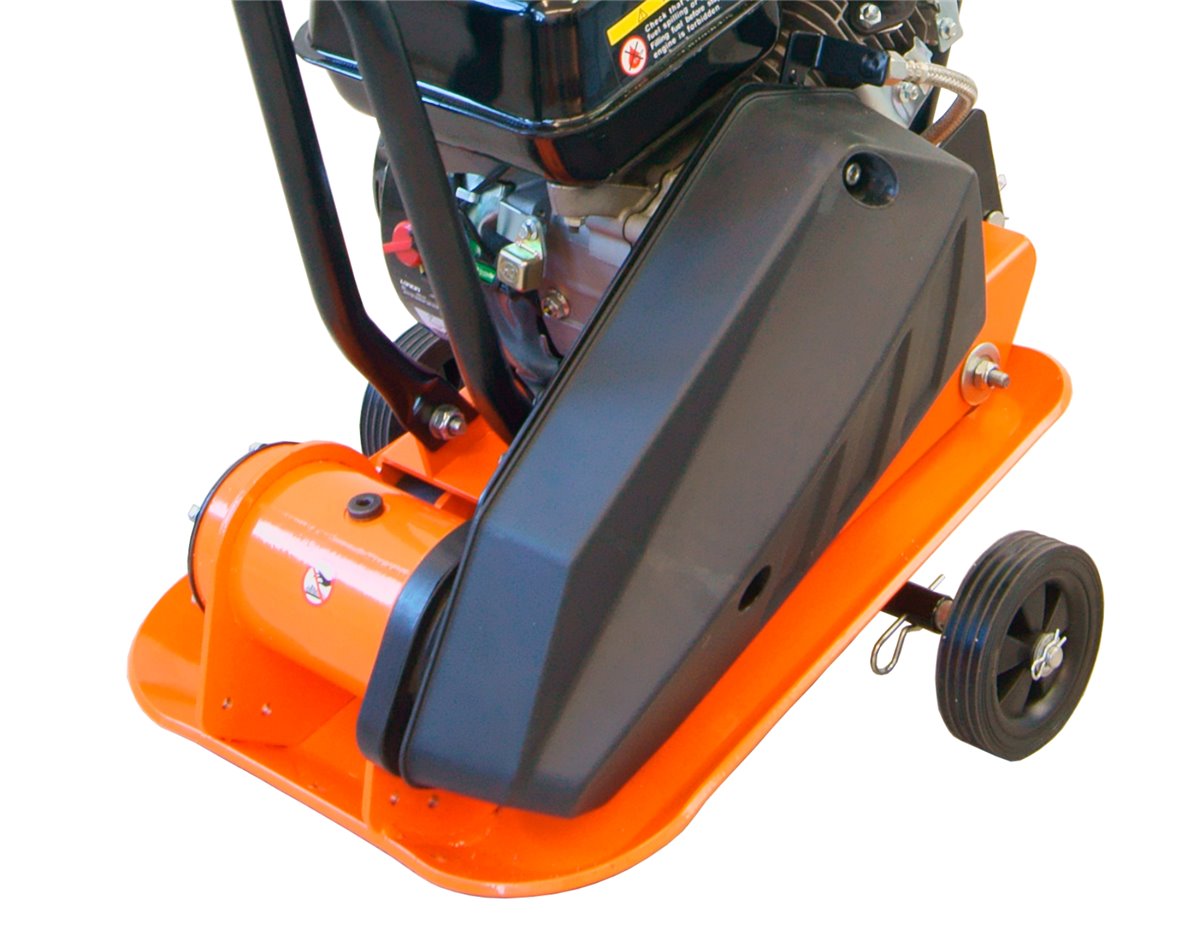

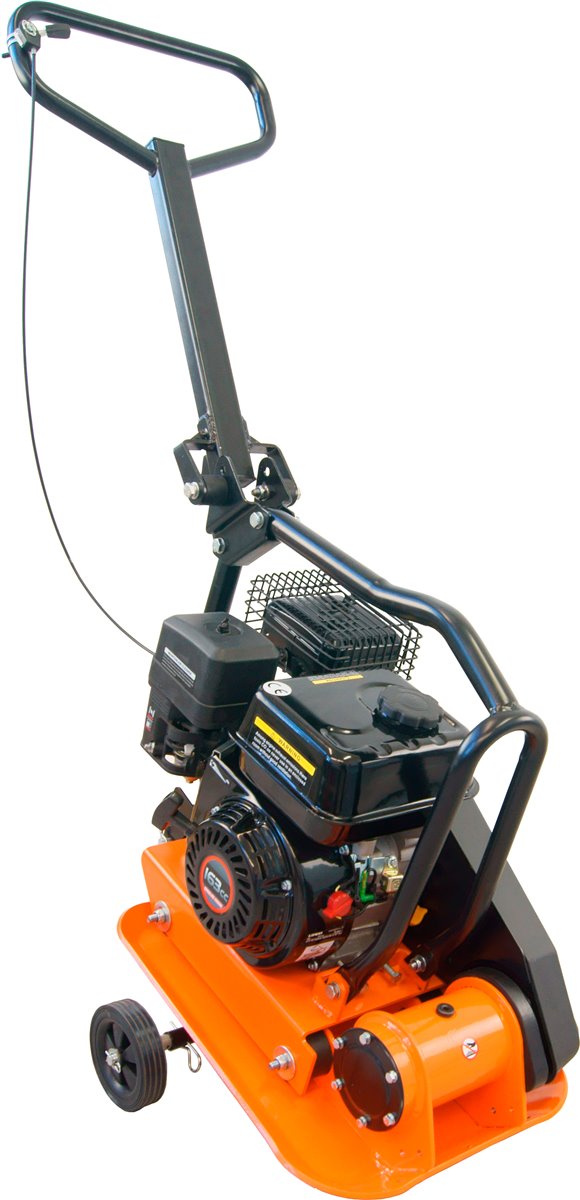

ATIKA V 11000 Vibratory Plate with Travelling Device & Rubber Plate | Petrol | 5.5 HP

Pleasant to work with thanks to its low weight and compact design. Ideal for paving work as well as for compacting small to medium areas.

Equipment:

• Forward running vibratory plate for paving and repair work.
• Suitable for compacting earth, grit and sand.
• Swivelling transport wheels for easy change of location.
• Foldable handle for space-saving storage.
• Powerful four-stroke engine with modern OHV technology and oil monitor.
• Compact design with low weight, easy to transport.
• High compression depth.
• Centrifugal clutch and V-belt drive.
• Base plate size 515 x 390 mm, particularly resistant to wear.
• Includes transparent polyurethane protective mat for paving work.

Technical details:

• 4-stroke petrol engine (EU II): 163 cm³
• Engine power: 4,0 kW (approx. 5,5 PS)
• Fuel tank capacity approx.: 3.8 litres
• Fuel: petrol (unleaded)
• Running speed: 25 m/min
• Compression pressure: 11 kN
• Vibration shocks: 5500 min-1
• Base plate: 515 x 390 mm
• Sound power level LWA: 105 dB (A)
• Sound pressure level LPA: 82 dB (A)
• Uncertainty factor K: 2.69 dB (A)
• Hand-arm vibration_avhw: 10.8 m/s²
• Measurement uncertainty factor K: 1.5 m/s²
• Choke lever
• Centrifugal clutch
• Chassis
• Weight: 63 kg
