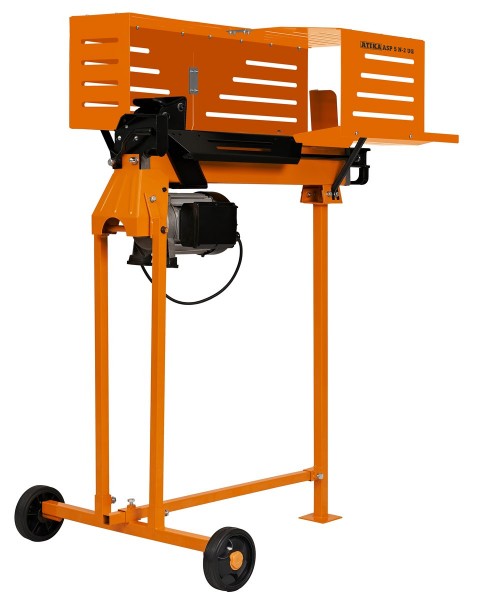

ATIKA ASP 5 N-2 UG Wood splitter Firewood splitter Hydraulic splitter | 230V | 5 t

Equipment:

• The log splitter complies with the latest EU product safety standard EN 609:2017
• Due to the compact, handy yet robust design, the log splitter can be used quickly and easily.
• The simple handling guarantees good splitting results.
• Increased work safety due to 2-hand operation and access protection.
• The wood tray prevents the split wood from falling down in an uncontrolled manner.
• Handle and wheels ensure easy transport.
• Underframe

Technical details:

• AC motor: 230 V ~ 50 Hz
• Power P1: 2200 W (S3 25%)
• Splitting force: 50 kN (5 tons) +- 10%
• Splitting length max.: 520 mm
• Splitting stroke max.: 370 mm
• System pressure: 20,6 MPa (206 bar)
• Oil quantity hydraulic system: 3,5 litres
• Piston rod Ø: 30 mm
• Two-hand operation with access protection
• Handle and wheels
• Sound pressure level at work place idling LPA: 78,8 dB (A)
• Sound pressure level at the working place working LPA: 89,8 dB (A)
• Weight approx.: 55 kg

Forwarding agency shipments with telephone appointment. Please state telephone number when ordering!
